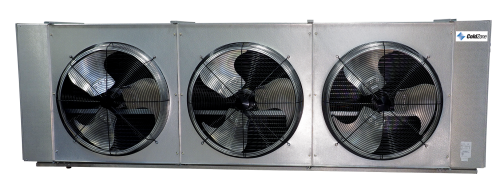

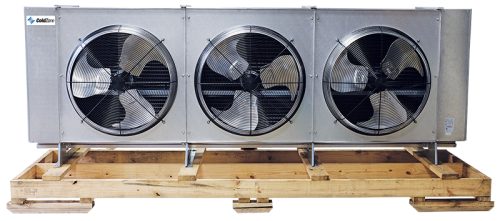

Designed with efficiency, performance and service in mind, Russell’s Warehouse Unit Cooler line is optimized to cover Cold Storage applications in the most effective way. Models are designed exclusively for use in walk-in coolers and freezers 3,000 sq. ft and larger. Warehouse Unit Coolers have several enhanced service features including rail-mount motors, new high efficiency fan and venturi designs, enhanced surface coil tubing, easily removable fan guards and modular fan panels, face mount defrost heaters, hinged drain pans and shipping pallets designed to facilitate easy installation. One through four fan models are available with air, electric or hot gas defrost.

Warehouse models are designed exclusively for use in walk-in coolers and freezers 3,000 sq. ft and larger.

Standard Features

• Rail-mount three-phase motors with standard or high-static pressure prop fan blades

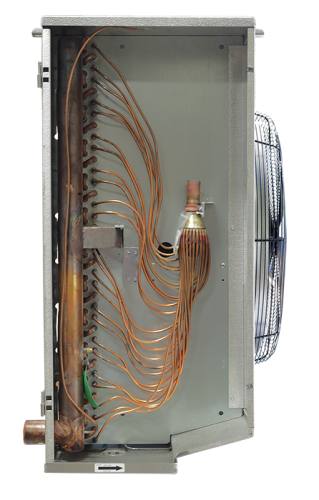

• Enhanced copper tube and aluminum fin coil construction
• High efficiency deep draw venturi for optimal air flow
• Slide out end panels
• Easily removable fan guards and modular fan panels
• Hinged drain pan

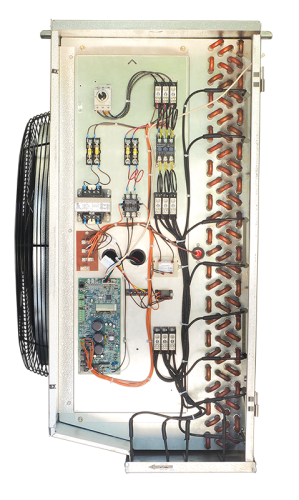

• Face mounted defrost heaters for optimal performance and easy service access
• Embossed aluminum housing
• UL/cUL certified for use with multiple refrigerants
• NSF approved for use in food preparation areas
• Available as single through four fan models
• Capacities range from 34,500 to 282,500 BTUH
SAMPLE OF OPTIONS

• EcoNet® Enabled Unit Cooler controller
• EcoNet Command Center
• Reverse connections
• Painted housing
• Coated Coil
• Suction/Liquid Heat Exchanger
• Insulated drain pan
