Non Flooded, Flooded Models

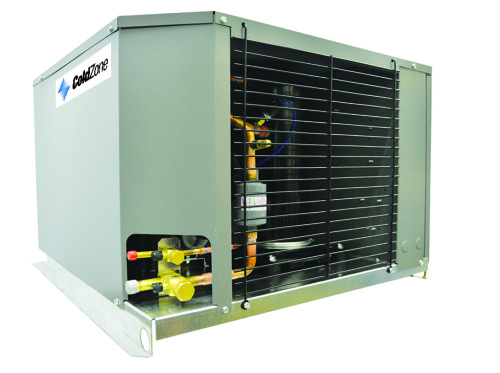

Uni-Pak Air Cooled Condensing Units provide a winning combination of high quality, increased flexibility and efficiency for lower long-term operating costs. These versatile units create a complete refrigeration solution for small to medium walk-ins when used with the All-Temp Low Profile Unit Cooler.

A key feature is the integral subcooling circuit that allows saturated liquid to flow from the receiver to the condenser where refrigerant is subcooled by ambient air—providing an average of 3° to 5°F of subcooling for higher efficiency and excellent operating stability. The units are designed to utilize R404A or other low global warming (GWP) refrigerants R407A, R407C and R448A/R449A and include a host of standard features and optional components.

Standard Features

• Low-cost Hermetic or quiet and efficient Scroll compressors available in ½ to 6 HP
• Extended range medium or low temperature models with or without flooded head pressure control
• All-weather - Galvanized steel painted housing
• Integral Liquid Subcooling Circuit provides subcooled liquid to the expansion device
• Quick access to shut-off valves from exterior
• Generously sized high efficiency condenser, enhanced copper tubes/aluminum fins
• Liquid line kit with filter/drier and sight glass with moisture indicator

SAMPLE OF OPTIONS
• Suction filter
• Oversized receiver
• Adjustable high/low pressure control
• Suction Accumulator
• Oil separator (may not be available with mounted accumulator)
• Thru-the-door fused disconnect for cabinet sizes FM2 through FM4
• External fused or non-fused disconnect - loose or mounted
• Heated and insulated receiver
